Baker Hughes launches all-electric intelligent well system
Baker Hughes has commercially released its MultiNode all-electric intelligent well system. It allows operators to remotely monitor and control a greater number of production zones in both cased and open-hole completions. The system improves initial production rates and ultimate recovery by combating early water and gas breakthrough and actively balancing flow in production zones.

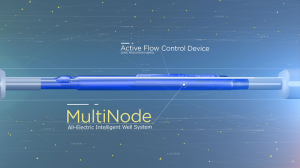

Primary components of the system include active flow control device (AFCD) downhole valves, tubing-encased conductor (TEC) cable and a surface control unit. Up to 27 AFCD valves can be run downhole, connected by a single TEC cable and controlled from the surface.
The system can be adjusted after the well goes on production, unlike passive inflow-control devices, so the system can remain effective as fluid properties and reservoir conditions change. If water or gas breakthrough is detected in one part of the well, the AFCD in that zone can be choked back or closed completely to lock out water and gas via a single control line while the well is producing. The surface controls can be accessed using a supervisory control and data acquisition interface to remotely monitor and control production zones from virtually anywhere and can continuously optimize production over a large number of zones without incurring unnecessary intervention costs.
